Stock Reels
MODEL R24A
Powered Reel
100 SERIES STOCK REELS
The most complete selection available from any source. Powered and non-powered. Adjustable and fixed centers.
Max. capacities 50-500 lbs. (22-227kg).
We build our stock reels for lasting durability featuring heavy duty shafts with full bearing support to handle heavy coil loads day in and day out, rugged coil centering arms, and sturdy all steel cabinets and support bases. The options and accessories for each of our models enables you to configure a reel practically any way you want for dependable payoff of coil stock.
Powered reels.
Electric drive-powered reels are made for ease of operation with innovative standard features such as our proportional control system. This top-of-the-line patented system features variable speed capability, electronic loop height adjustment and loop sensing arm range control.
MODEL SELECTION
| Powered Model | Max Coil Weight | Max Coil OD | Max Material Width | Center Diameter | Powered Max Speed |
| Adjustable Center | |||||
| R23A | 75 lbs (34kg) | 18” (457mm) | 4” (102mm) | 3” – 10” (76-254mm) | 80rpm |
| R24A | 75 lbs (34kg) | 24” (610mm) | 4” (102mm) | 3” – 12” (76-305mm) | 80rpm |
| R25A | 75 lbs (34kg) | 30” (762mm) | 4” (102mm) | 3” – 12” (76-305mm) | 80rpm |
| R34A | 150 lbs (68kg) | 24” (610mm) | 4” (102mm) | 5” – 16” (127-406mm) | 50rpm |
| R35A | 150 lbs (68kg) | 30” (762mm) | 4” (102mm) | 5” – 16” (127-406mm) | 50rpm |
| R36A | 150 lbs (68kg) | 36” (915mm) | 4” (102mm) | 5” – 16” (127-406mm) | 50rpm |
| R45A | 250 lbs (114kg) | 30” (762mm) | 6” (152mm) | 9” – 20” (229-508mm) | 50rpm |
| R46A | 250 lbs (114kg) | 36” (915mm) | 6” (152mm) | 9” – 20” (229-508mm) | 50rpm |
| R56A | 500 lbs (227kg) | 36” (915mm) | 6” (152mm) | 9” – 20” (229-508mm) | 33rpm |
| R58A | 500 lbs (227kg) | 48” (1220mm) | 6” (152mm) | 9” – 20” (229-508mm) | 33rpm |
| Fixed Center | |||||
| *R13NF | 50 lbs (22kg) | 18” (457mm) | 4” (102mm) | 3/4” (19mm) | —- |
| R23F | 75 lbs (34kg) | 18” (457mm) | 4” (102mm) | 3/4” (19mm) | 80rpm |
| R24F | 75 lbs (34kg) | 24” (610mm) | 4” (102mm) | 3/4” (19mm) | 80rpm |
| R25F | 75 lbs (34kg) | 30” (762mm) | 4” (102mm) | 3/4” (19mm) | 80rpm |
| R34F | 150 lbs (68kg) | 24” (610mm) | 4” (102mm) | 1-1/2” (38mm) | 50rpm |
| R35F | 150 lbs (68kg) | 30” (762mm) | 4” (102mm) | 1-1/2” (38mm) | 50rpm |
| R36F | 150 lbs (68kg) | 36” (915mm) | 4” (102mm) | 1-1/2” (38mm) | 50rpm |
| R45F | 250 lbs (114kg) | 30” (762mm) | 6” (152mm) | 1-1/2” (38mm) | 50rpm |
| R46F | 250 lbs (114kg) | 36” (915mm) | 6” (152mm) | 1-1/2” (38mm) | 50rpm |
| R56F | 500 lbs (227kg) | 36” (915mm) | 6” (152mm) | 1-3/4” (44.5mm) | 33rpm |
| R58F | 500 lbs (227kg) | 48” (1220mm) | 6” (152mm) | 1-3/4” (44.5mm) | 33rpm |
* Example of non-powered modular reel generally used for paper interleaf.
Non-powered.
Non-powered reels are available in all sizes, 50 lbs. (22kg) capacity to 500 lbs. (227kg) capacity. All have adjustable mechanical drag brakes. Add NF for non-powered fixed center or NA for non-powered adjustable center.
| Powered Model | Max Coil Weight | Max Coil OD | Max Material Width | Center Diameter | Powered Max Speed |
| Hydraulic Reel Adjustable Center | |||||
| RH34A | 150 lbs (68kg) | 24” (610mm) | 4” (102mm) | 5” – 16” (127-406mm) | 80rpm |
| RH35A | 150 lbs (68kg) | 30” (762mm) | 4” (102mm) | 5” – 16” (127-406mm) | 80rpm |
| RH36A | 150 lbs (68kg) | 36” (915mm) | 4” (102mm) | 5” – 16” (127-406mm) | 80rpm |
| RH45A | 250 lbs (114kg) | 30” (762mm) | 6” (152mm) | 9” – 20” (229-508mm) | 80rpm |
| RH46A | 250 lbs (114kg) | 36” (915mm) | 6” (152mm) | 9” – 20” (229-508mm) | 80rpm |
| RH56A | 400 lbs (182kg) | 36” (915mm) | 6” (152mm) | 9” – 20” (229-508mm) | 70rpm |
| RH58A | 400 lbs (182kg) | 48” (1220mm) | 6” (152mm) | 9” – 20” (229-508mm) | 70rpm |
| Hydraulic Reel Fixed Center | |||||
| RH34F | 150 lbs (68kg) | 24” (610mm) | 4” (102mm) | 1-1/2” (38.1mm) | 80rpm |
| RH35F | 150 lbs (68kg) | 30” (762mm) | 4” (102mm) | 1-1/2” (38.1mm) | 80rpm |
| RH36F | 150 lbs (68kg) | 36” (915mm) | 4” (102mm) | 1-1/2” (38.1mm) | 80rpm |
| RH45F | 250 lbs (114kg) | 30” (762mm) | 6” (152mm) | 1-1/2” (38.1mm) | 80rpm |
| RH46F | 250 lbs (114kg) | 36” (915mm) | 6” (152mm) | 1-1/2” (38.1mm) | 80rpm |
| RH56F | 400 lbs (182kg) | 36” (915mm) | 6” (152mm) | 1-3/4” (44.5mm) | 70rpm |
| RH58F | 400 lbs (182kg) | 48” (1220mm) | 6” (152mm) | 1-3/4” (44.5mm) | 70rpm |
| Model | Description |
| Drives | D.C. powered, hydraulic powered and non-powered with adjustable drag brake. |
| Styles | Cabinet, swivel, modular multi-head, custom arrangement, fixed and adjustable center. Loop arm, low loop and external loop control. |
| Application | Determine max. coil wt. and select appropriate model. Example: 125 lbs. (56kg) coil wt. = R30 reel, 150 lbs. (68kg) max. cap. coil O.D., I.D. and width = 24” (610mm) O.D. x 12” (305mm) I.D. X 1.3” (33mm) wide chose R34A = 24” (610mm) O.D. X 5” (127mm) to 16” (406mm) I.D. X 4” (102mm) wide max. speed (at minimum O.D.) 12” (305mm) I.D. X π X 50rpm max. = 1,884 inches (4785cm) per min. for powered reel. |

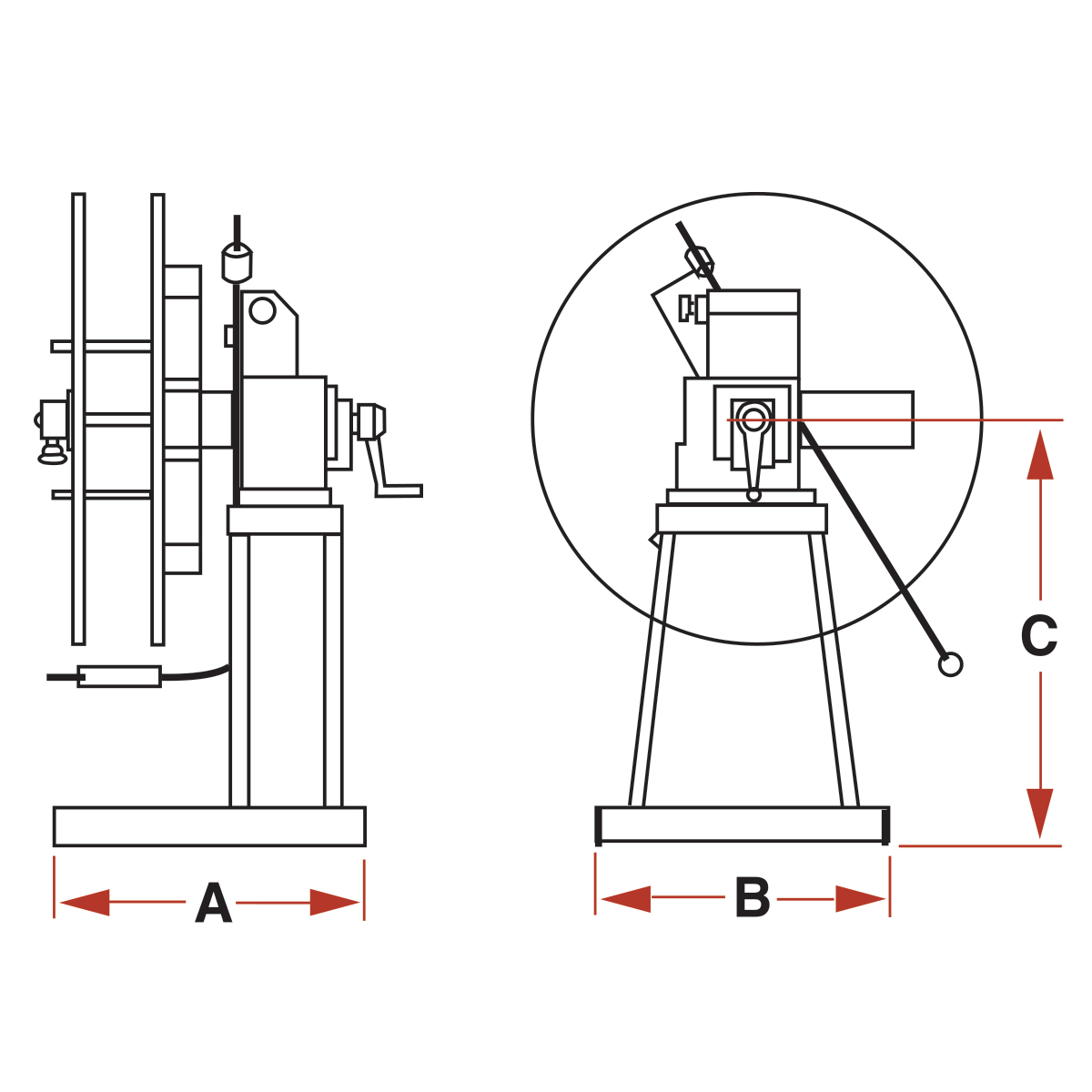

| Reel Series Number | Base Depth A | Base Width B | Center Height C | |
| Powered Reel Dimensions | ||||
| R20 | 20” (508mm) | 24” (610mm) | 34” (863mm) | |
| R30 | 20” (508mm) | 24” (610mm) | 34” (863mm) | |
| R40 | 20” (508mm) | 24” (610mm) | 34” (863mm) | |
| R50 | 25” (635mm) | 24” (610mm) | 34” (863mm) | |
| Non-Powered Reel Dimensions | ||||
| R20N | 20” (508mm) | 24” (610mm) | 34” (863mm) | |
| R30N | 20” (508mm) | 24” (610mm) | 34” (863mm) | |
| R40N | 20” (508mm) | 24” (610mm) | 34” (863mm) | |
| R50N | 25” (635mm) | 24” (610mm) | 34” (863mm) | |
| Hydraulic Drive Dimensions | ||||
| RH30 | 20” (508mm) | 24” (610mm) | 34” (863mm) | |
| RH40 | 20” (508mm) | 24” (610mm) | 34” (863mm) | |
| RH50 | 25” (635mm) | 24” (610mm) | 34” (863mm) | |
| RH2012 | 45” (1,143mm) | 61” (1,549mm) | 40” (1,016mm) |
AutoCAD files are available on Rapid-Air products to assist in layout on integration.
1000 SERIES SINGLE STOCK REELS
Powered and non-powered. Adjustable and fixed. With or without brakes.
Max. capacities 1,500-6,000 lbs. (682-2727kg).
The Rapid-Air 1000 Series of single stock reels represents a line of heavy-duty reels starting at 1,500 lbs. (682kg) capacity. Built rock solid in the Rapid-Air tradition, with heavy-duty shafts and full bearing support to handle heavy coil loads, 1000 Series single stock reels are available in both powered and non-powered models.
Powered reels are designed to accept all Rapid-Air loop controls. All Rapid-Air powered stock reels are equipped with variable speed drive motors and feature as standard, our proportional electronic control system. This system allows loop curve to be tailored to individual material characteristics. Operating speed is automatically adjusted to match line speed. Dancer arm loop sensing is standard.
Inner coil plates or keeper arms are options on both variable speed powered and non-powered models.
Hydraulic Expansion Reels
Rapid-Air offers manual centering arms or hydraulic expansion to grip the inside diameter of the coil. We also offer optional hold down arms and safety cages for “clockspring” concerns.
Consult Rapid-Air for your unique requirements. We are happy to manufacture special diameter shafts, stepped shafts, shafts for air chuck style inside diameter grip and other engineered solutions to meet your specific needs.
1000 SERIES MODEL SELECTION
| Mechanical Centering Arms Model | Max Coil Weight | Max Coil OD | Max Material Width | Center Diameter | Max Speed in/min. | Powered AC Input Power Required |
| Powered | ||||||
| RA1512 | 1,500 lbs (682kg) | 48” (122cm) | 12” (31cm) | 14” – 22” (36cm-56cm) | 23rpm | 1/2hp, 115vac, 1ph |
| RA2506 | 2,500 lbs (1136kg) | 60” (152cm) | 6” (15cm) | 16” – 24” (41cm-61cm) | 23rpm | 1hp, 115vac, 1ph |
| RA2512 | 2,500 lbs (1136kg) | 60” (152cm) | 12” (31cm) | 16” – 24” (41cm-61cm) | 23rpm | 1hp, 115vac, 1ph |
| RA2518 | 2,500 lbs (1136kg) | 60” (152cm) | 18” (46cm) | 16” – 24” (41cm-61cm) | 23rpm | 1hp, 115vac, 1ph |
| RA4012 | 4,000 lbs (1818kg) | 60” (152cm) | 12” (31cm) | 16” – 24” (41cm-61cm) | 23rpm | 1-1/2hp, 230vac, 1ph |
| RA4018 | 4,000 lbs (1818kg) | 60” (152cm) | 18” (46cm) | 16” – 24” (41cm-61cm) | 23rpm | 1-1/2hp, 230vac, 1ph |
| RA4024 | 4,000 lbs (1818kg) | 60” (152cm) | 24” (61cm) | 16” – 24” (41cm-61cm) | 23rpm | 1-1/2hp, 230vac, 1ph |
| RA6012 | 6,000 lbs (2727kg) | 72” (183cm) | 12” (31cm) | 17” – 24” (46cm-64cm) | 17rpm | 2hp, 230vac, 1ph |
| RA6018 | 6,000 lbs (2727kg) | 72” (183cm) | 18” (46cm) | 17” – 24” (46cm-64cm) | 17rpm | 2hp, 230vac, 1ph |
| RA6024 | 6,000 lbs (2727kg) | 72” (183cm) | 24” (61cm) | 17” – 24” (46cm-64cm) | 17rpm | 2hp, 230vac, 1ph |
| Non-Powered Air Drag Brake | ||||||
| RPA1512 | 1,500 lbs (682kg) | 48” (122cm) | 12” (31cm) | 14” – 22” (36cm-56cm) | 115vac, 60hz, 1ph for hydraulic expansion | |
| RPA2506 | 2,500 lbs (1136kg) | 60” (152cm) | 6” (15cm) | 16” – 24” (41cm-61cm) | 115vac, 60hz, 1ph for hydraulic expansion | |
| RPA2512 | 2,500 lbs (1136kg) | 60” (152cm) | 12” (31cm) | 16” – 24” (41cm-61cm) | 115vac, 60hz, 1ph for hydraulic expansion | |
| RPA2518 | 2,500 lbs (1136kg) | 60” (152cm) | 18” (46cm) | 16” – 24” (41cm-61cm) | 115vac, 60hz, 1ph for hydraulic expansion | |
| RPA4012 | 4,000 lbs (1818kg) | 60” (152cm) | 12” (31cm) | 16” – 24” (41cm-61cm) | 115vac, 60hz, 1ph for hydraulic expansion | |
| RPA4018 | 4,000 lbs (1818kg) | 60” (152cm) | 18” (46cm) | 16” – 24” (41cm-61cm) | 115vac, 60hz, 1ph for hydraulic expansion | |
| RPA4024 | 4,000 lbs (1818kg) | 60” (152cm) | 24” (61cm) | 16” – 24” (41cm-61cm) | 115vac, 60hz, 1ph for hydraulic expansion | |
| RPA6012 | 6,000 lbs (2727kg) | 72” (183cm) | 12” (31cm) | 17” – 24” (46cm-64cm) | 115vac, 60hz, 1ph for hydraulic expansion | |
| RPA6018 | 6,000 lbs (2727kg) | 72” (183cm) | 18” (46cm) | 17” – 24” (46cm-64cm) | 115vac, 60hz, 1ph for hydraulic expansion | |
| RPA6024 | 6,000 lbs (2727kg) | 72” (183cm) | 24” (61cm) | 17” – 24” (46cm-64cm | 115vac, 60hz, 1ph for hydraulic expansion |
1000 SERIES DIMENSIONS
1000 SERIES DIMENSIONS
| Model | A | B | C | D |
| Series 15 Powered & Non-powered 1,500 lbs (682kg) Capacity | ||||
| RA1512 | 35” (89cm) | 48” (122cm) | 38” (97cm) | 62” (158cm) |
| Series 25 Powered & Non-powered 2,500 lbs (1136kg) Capacity | ||||
| RA2506 | 45” (114cm) | 61” (155cm) | 40” (102cm) | 74” (188cm) |
| RA2512 | 45” (114cm) | 61” (155cm) | 40” (102cm) | 74” (188cm) |
| RA2518 | 45” (114cm) | 61” (155cm) | 40” (102cm) | 74” (188cm) |
| Series 40 Powered & Non-powered 4,000 lbs (1818kg) Capacity | ||||
| RA4012 | 45” (114cm) | 61” (155cm) | 40” (102cm) | 74” (188cm) |
| RA4018 | 45” (114cm) | 61” (155cm) | 40” (102cm) | 74” (188cm) |
| RA4024 | 45” (114cm) | 61” (155cm) | 40” (102cm) | 74” (188cm) |
| Series 60 Powered & Non-powered 6,000 lbs (2727kg) Capcity | ||||
| RA6012 | 58” (147cm) | 67” (170cm) | 43” (109cm) | 84” (213cm) |
| RA6018 | 58” (147cm) | 67” (170cm) | 43” (109cm) | 84” (213cm) |
| RA6024 | 58” (147cm) | 67” (170cm) | 43” (109cm) | 84” (213cm) |
