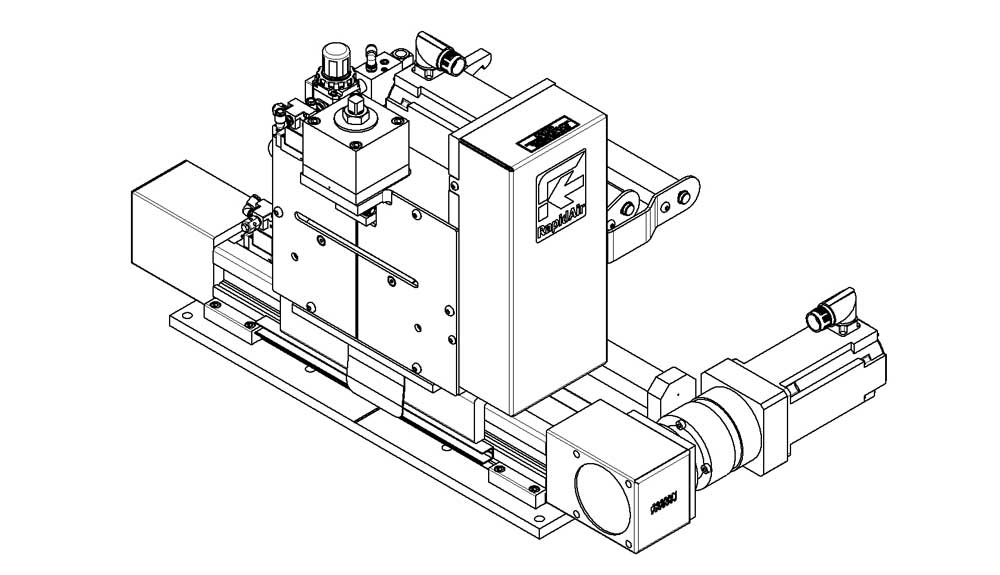

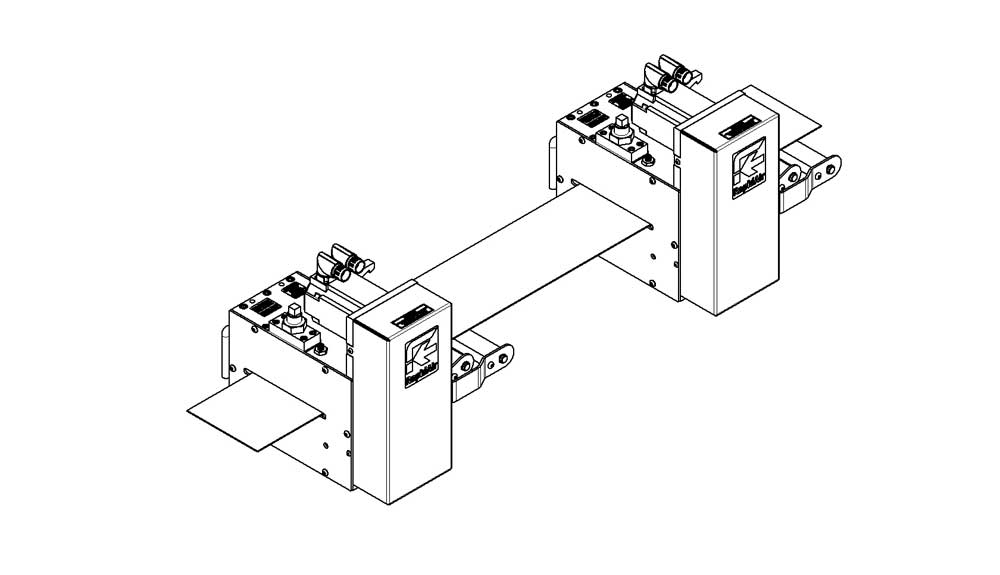

Stagger Servo
Click Here
Click Here
Click Here
Previous
Next

For hard driving, fast, accurate production.

  • Fast job changeover
  • Compact and simple to install
  • High production rates
  • Rugged reliability
  • Low maintenance

Selecting the right servo model

  • Primary considerations when selecting a model should be:
    • Material thickness
    • Width
    • Speed

Questions? Contact sales@rapidair.com
SERVO IMAGESERVO MODELMAX WIDTHMAX THICKNESSMAX ROLL OPENINGSTANDARD ROLL TYPEAC INPUT REQUIREDPERFORMANCE DATAFEATURESMODEL SELECTION GUIDEOPTIONS & ACCESSORIES
MS22"
(51 MM)
.040"
(1.02 MM)
.060"
(1.52 MM)
HARDENED & GROUND115V
1 PH
60 HZ
•BRUSHLESS AC MOTOR WITH DIGITAL CONTROL, INTEGRAL SINGLE RESOLVER FEEDBACK.
•CLOSED LOOP TORQUE, VELOCITY, AND POSITION SENSING CONTROL.
•ALL ROLLS DRIVEN.
•FEED LENGTHS .001" TO 999.999".
•JOB MEMORY FOR UP TO 99 JOBS.
•DATA ENTRY KEYPAD- 4 ROW, 80 CHARACTER LCD DISPLAY.


•ECONOMICAL PROGRAMMABLE ROLL FEED.
•IDEAL FOR SHOPS MAKING TRANSITION FROM AIR FEEDS.
•MINI SERVO FEEDS ARE ECONOMICAL ENOUGH TO MOUNT AND LEAVE ON DIE.
•SAVES SET UP TIME.
•COMPACT SIZE MAKES MINI SERVO IDEAL FOR AUTOMATION EQUIPMENT.
•ADJUSTABLE MOUNTING BRACKET
•ENTRANCE CASCADE ROLLS.
•PILOT RELEASE VALVE
•SPECIAL RELIEVED ROLLS.
•SPECIAL ROLL FINISH
MS44"
(102 MM)
.040"
(1.02 MM)
.060"
(1.52 MM)
HARDENED & GROUND115V
1 PH
60 HZ
MS88"
(203 MM)
.031"
(.79 MM)
.060"
(1.52 MM)
HARDENED & GROUND115V
1 PH
60 HZ
MS2 HUMMER2"
(51 MM)
.040"
(1.02 MM)
.060"
(1.52 MM)
HARDENED & GROUND115V
1 PH
60 HZ
SAME AS STANDARD
MINI SERVO
•BRUSHLESS AC MOTOR WITH DIGITAL CONTROL, INTEGRAL SINGLE RESOLVER FEEDBACK.
•CLOSED LOOP TORQUE, VELOCITY, AND POSITION SENSING CONTROL.
•ALL ROLLS DRIVEN.
•FEED LENGTHS .001" TO 999.999".
•JOB MEMORY FOR UP TO 99 JOBS.
•DATA INSTRUMENTS AND LINK PRESS CONTROL COMPATIBLE.
•FEED COMPLETE SIGNAL.
•BATCH COUNT.
•SAME PERFORMANCE OF THE STANDARD MINI SERVO WITH AN UPGRADED CONTROL FROM THE 100D SERVO LINE.•ADJUSTABLE MOUNTING BRACKET
•ENTRANCE CASCADE ROLLS.
•PILOT RELEASE VALVE
•SPECIAL RELIEVED ROLLS.
•SPECIAL ROLL FINISH
MS4 HUMMER4"
(102 MM)
.040"
(1.02 MM)
.060"
(1.52 MM)
HARDENED & GROUND115V
1 PH
60 HZ
MS8 HUMMER8"
(203 MM)
.031"
(.79 MM)
.060"
(1.52 MM)
HARDENED & GROUND115V
1 PH
60 HZ
MS2 HUMMER2"
(51 MM)
.040"
(1.02 MM)
.060"
(1.52 MM)
HARDENED & GROUND230V
3 PH
60 HZ
•BRUSHLESS AC MOTOR WITH DIGITAL CONTROL, INTEGRAL SINGLE RESOLVER FEEDBACK.
•CLOSED LOOP TORQUE, VELOCITY, AND POSITION SENSING CONTROL.
•ALL ROLLS DRIVEN.
•FEED LENGTHS .001" TO 999.999".
•JOB MEMORY FOR UP TO 99 JOBS.
•DATA INSTRUMENTS AND LINK PRESS CONTROL COMPATIBLE.
•FEED COMPLETE SIGNAL.
•BATCH COUNT.
•SAME CAPACITY AS STANDARD MINI SERVOS WITH INCREASED SPEED.•ADJUSTABLE MOUNTING BRACKET
•ENTRANCE CASCADE ROLLS.
•HIGH SPEED PILOT RELEASE VALVE
•SPECIAL RELIEVED ROLLS.
•SPECIAL ROLL FINISH
MS4 HUMMER4"
(102 MM)
.040"
(1.02 MM)
.060"
(1.52 MM)
HARDENED & GROUND230V
3 PH
60 HZ
MS8 HUMMER8"
(203 MM)
.031"
(.79 MM)
.060"
(1.52 MM)
HARDENED & GROUND230V
3 PH
60 HZ
106D6"
(152 MM)
.085"
(2.15 MM)
.150"
(3.81 MM)
HARDENED & GROUND115V
1 PH
60 HZ
•BRUSHLESS AC MOTOR WITH DIGITAL CONTROL, INTEGRAL SINGLE RESOLVER FEEDBACK.
•CLOSED LOOP TORQUE, VELOCITY, AND POSITION SENSING CONTROL.
•ALL ROLLS DRIVEN.
•FEED LENGTHS .001" TO 999.999".
•JOB MEMORY FOR UP TO 99 JOBS.
•DATA INSTRUMENTS AND LINK PRESS CONTROL COMPATIBLE.
•FEED COMPLETE SIGNAL.
•BATCH COUNT.
•PROGRAMMABLE ROLL FEED.
•HIGHER SPEED THAN MINI SERVOS WITH THE CONVENIENCE OF 115 VAC.
•ADJUSTABLE MOUNTING BRACKET
•ENTRANCE CASCADE ROLLS.
•PILOT RELEASE VALVE
•SPECIAL RELIEVED ROLLS.
•SPECIAL ROLL FINISH
112D12"
(305 MM)
.060"
(1.52 MM)
.150"
(3.81 MM)
HARDENED & GROUND115V
1 PH
60 HZ
118D18"
(457 MM)
.045"
(1.14 MM)
.150"
(3.81 MM)
HARDENED & GROUND115V
1 PH
60 HZ
106T6"
(152 MM)
.105"
(2.66 MM)
.150"
(3.81 MM)
HARDENED & GROUND230V
3 PH
60 HZ
•SAME AS 100D SERIES•SIMILAR TO 100D SERIES BUT WITH MORE CAPACITY, SPEED, AND TORQUE. SEE PERFORMANCE DATA.•ADJUSTABLE MOUNTING BRACKET
•ENTRANCE CASCADE ROLLS.
•PILOT RELEASE VALVE
•SPECIAL RELIEVED ROLLS.
•SPECIAL ROLL FINISH
112T12"
(305 MM)
.080"
(2.03 MM)
.150"
(3.81 MM)
HARDENED & GROUND230V
3 PH
60 HZ
118T18"
(457 MM)
.065"
(1.65 MM)
.150"
(3.81 MM)
HARDENED & GROUND230V
3 PH
60 HZ
208T8"
(203 MM)
.105"
(2.66 MM)
.180"
(4.57 MM)
HARDENED & GROUND230V
3 PH
60 HZ
THIS SERVO GROUP HAS EVERYTHING THE 100 SERIES HAS PLUS:
•L.ARGER FEED ROLL DIAMETER.
•HIGHER THICKNESS CAPACITY.
•HIGHER SPEED.
•AIR REGULATED FEED ROLL PRESSURE.
•STANDARD AIR PILOT RELEASE.
•ADJUSTABLE MOUNTING BRACKET
•ENTRANCE CASCADE ROLLS.
•PILOT RELEASE VALVE
•SPECIAL RELIEVED ROLLS.
•SPECIAL ROLL FINISH
212T12"
(305 MM)
.095"
(2.41 MM)
.180"
(4.57 MM)
HARDENED & GROUND230V
3 PH
60 HZ
218T18"
(457 MM)
.085"
(2.15 MM)
.180"
(4.57 MM)
HARDENED & GROUND230V
3 PH
60 HZ
224T24"
(610 MM)
.075"
(1.91 MM)
.180"
(4.57 MM)
HARDENED & GROUND230V
3 PH
60 HZ
208TX8"
(203 MM)
.125"
(3.18 MM)
.180"
(4.57 MM)
HARDENED & GROUND230V
3 PH
60 HZ
•SAME AS 200T SERIES•SIMILAR TO 200T SERIES BUT WITH MORE CAPACITY. SEE PERFORMANCE DATA.•ADJUSTABLE MOUNTING BRACKET
•PILOT RELEASE VALVE
•SPECIAL RELIEVED ROLLS.
•SPECIAL ROLL FINISH
212TX12"
(305 MM)
.125"
(3.18 MM)
.180"
(4.57 MM)
HARDENED & GROUND230V
3 PH
60 HZ
218TX18"
(457 MM)
.100"
(2.54 MM)
.180"
(4.57 MM)
HARDENED & GROUND230V
3 PH
60 HZ
224TX24"
(610 MM)
.100"
(2.54 MM)
.180"
(4.57 MM)
HARDENED & GROUND230V
3 PH
60 HZ
412T12"
(304 MM)
.1875"
(4.76 MM)
.250"
(6.35 MM)
HARDENED & GROUND480V
3 PH
60 HZ
•BRUSHLESS AC MOTOR WITH DIGITAL CONTROL, INTEGRAL SINGLE RESOLVER FEEDBACK.
•CLOSED LOOP TORQUE, VELOCITY, AND POSITION SENSING CONTROL.
•ALL ROLLS DRIVEN.
•FEED LENGTHS .001" TO 999.999".
•JOB MEMORY FOR UP TO 99 JOBS.
•DATA INSTRUMENTS AND LINK PRESS CONTROL COMPATIBLE.
•FEED COMPLETE SIGNAL.
•BATCH COUNT.
•AIR REGULATED UPPER FEED ROLL

•THIS SERVO HAS EVERYTHING THE 200TX SERIES HAS PLUS:
•L.ARGER FEED ROLL DIAMETER.
•HIGHER THICKNESS CAPACITY.
•AIR REGULATED FEED ROLL PRESSURE.
•STANDARD AIR PILOT RELEASE.
•ADJUSTABLE MOUNTING BRACKET
•SPECIAL RELIEVED ROLLS.
•SPECIAL ROLL FINISH
KD-66"
(152 MM)
.006" TO .125"
(.15 MM
TO
3.18 MM)
-HARDENED & GROUND480V
3 PH
60 HZ
•BRUSHLESS AC MOTOR WITH DIGITAL CONTROL, INTEGRAL SINGLE RESOLVER FEEDBACK.
•CLOSED LOOP TORQUE, VELOCITY, AND POSITION SENSING CONTROL.
•ALL ROLLS DRIVEN.
•FEED LENGTHS .001" TO 999.999".
•JOB MEMORY FOR UP TO 99 JOBS.
•DATA INSTRUMENTS AND LINK PRESS CONTROL COMPATIBLE.
•FEED COMPLETE SIGNAL.
•BATCH COUNT.
•PATENTED PLATEN DESIGN.
•ROLL POSITION INDICATORS.
•SWING OPEN TOP FOR CLEANING.
•9 GROUND AND HARDENED STRAIGTHENING ROLLS.

•STRAIGHTENING CAPACITY OF THE SD-6 WITH DRIVING
POWER FROM THE 412T SERVO.
•REDUCES FOOTPRINT BY ELIMINATING LOOP BETWEEN TRADITIONAL SERVO AND STRAIGHTENER.
•SPECIAL RELIEVED ROLLS.
•SPECIAL ROLL FINISH
KBX-44"
(102 MM)
.004" TO .080"
(.10 MM
TO
2.03 MM)
-HARDENED & GROUND230V
3 PH
60 HZ
CONTACT FACTORY•BRUSHLESS AC MOTOR WITH DIGITAL CONTROL, INTEGRAL SINGLE RESOLVER FEEDBACK.
•CLOSED LOOP TORQUE, VELOCITY, AND POSITION SENSING CONTROL.
•ALL ROLLS DRIVEN.
•FEED LENGTHS .001" TO 999.999".
•JOB MEMORY FOR UP TO 99 JOBS.
•DATA INSTRUMENTS AND LINK PRESS CONTROL COMPATIBLE.
•FEED COMPLETE SIGNAL.
•BATCH COUNT.
•PATENTED PLATEN DESIGN.
•ROLL POSITION INDICATORS.
•SWING OPEN TOP FOR CLEANING.
•9 GROUND AND HARDENED STRAIGTHENING ROLLS.

•STRAIGHTENING CAPACITY OF THE SBX SERIES WITH DRIVING POWER FROM THE 200TX SERVO.
•REDUCES FOOTPRINT BY ELIMINATING LOOP BETWEEN TRADITIONAL SERVO AND STRAIGHTENER.
•SPECIAL RELIEVED ROLLS.
•SPECIAL ROLL FINISH
KBX-88"
(203 MM)
.004" TO .070"
(.10 MM
TO
1.78 MM)
-HARDENED & GROUND230V
3 PH
60 HZ
